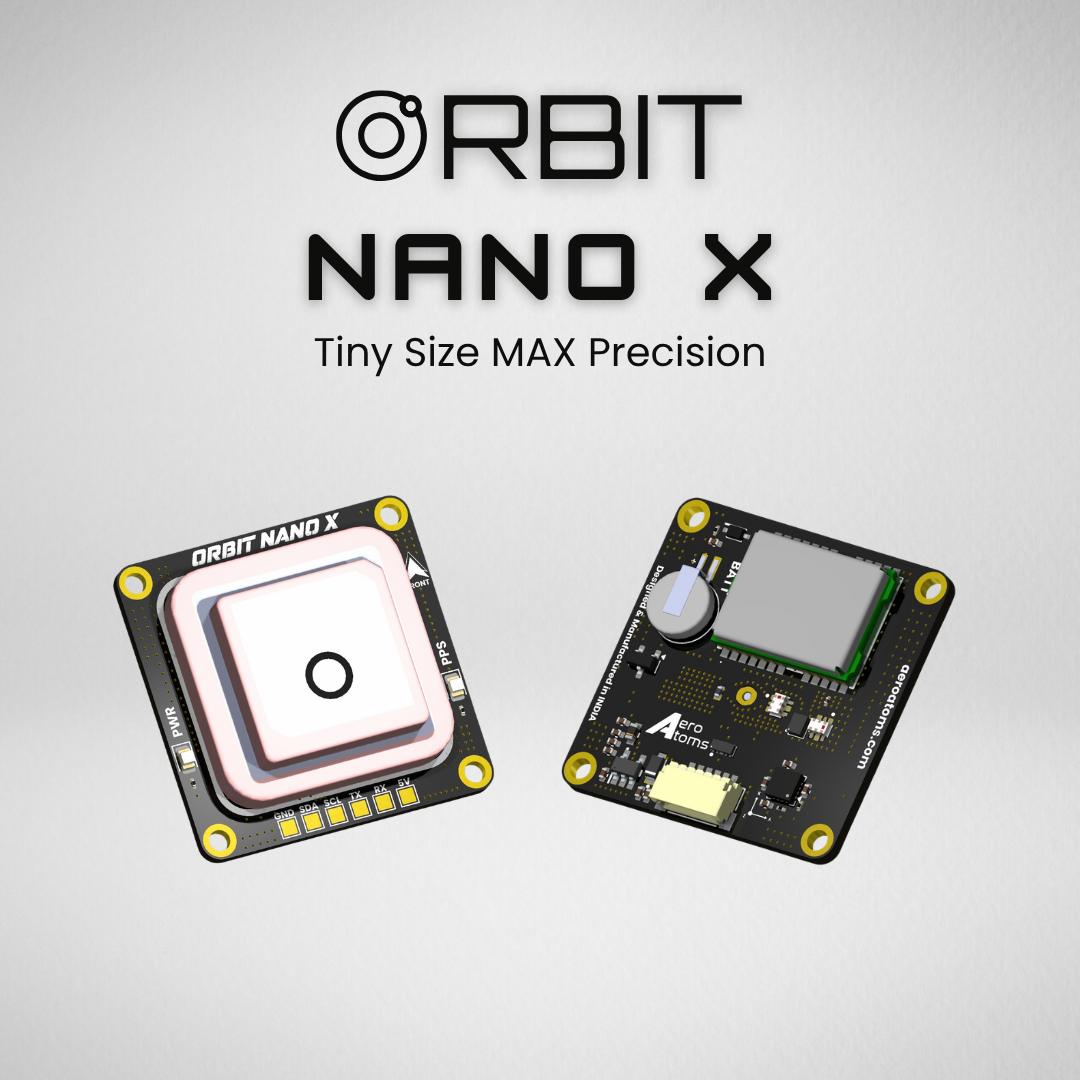

Orbit Nano X
The ORBIT NANO X integrates the advanced u-blox NEO-F9P-15B RTK GNSS receiver and IST8310 magnetometer. This compact system provides dual-band L1/L5 multi-constellation GNSS capabilities with RTK support for centimeter-level accuracy, making it ideal for applications requiring high-precision positioning in the smallest form factor. A multi-constellation, dual-band antenna is included to ensure optimal signal reception across diverse environments.
Key Features
- Smallest RTK GNSS: Ultra-compact form factor with comprehensive dual-band RTK satellite support
- Integrated LNA + SAW Filter: Built-in low-noise amplifier and surface acoustic wave filter for enhanced signal gain and superior interference rejection
- Dual-Band L1/L5 RTK: Multi-band support optimized for urban environments with superior multipath mitigation
- Multi-Constellation Support: Concurrent tracking of GPS, Galileo, BeiDou, GLONASS, and NavIC signals
- GNSS Bands Support: L1C/A, L5, E1B/C, E5a, B1I, B2a (including NavIC L1/L5)
- Centimeter-Level Accuracy: High-precision RTK positioning for critical applications
- Integrated Magnetometer: IST8310 3-axis digital compass for complete navigation solution
- UART Interface: Standard serial interface for universal compatibility
- Dual LED Status: Green LED for power status, Blue PPS LED for GPS lock indication, Orange LED for RTK status
- High Update Rate: Navigation rate of up to 10 Hz for dynamic applications
- Enhanced Sensitivity: LNA amplification for improved weak signal performance
Magnetometer (IST8310)
| Parameter | Specification |
|---|---|
| Full Scale | ±1600 µT |
| Resolution | 0.3 µT |
| Output Data Rate | Up to 160 Hz |
| Operating Range | -40°C to +85°C |
