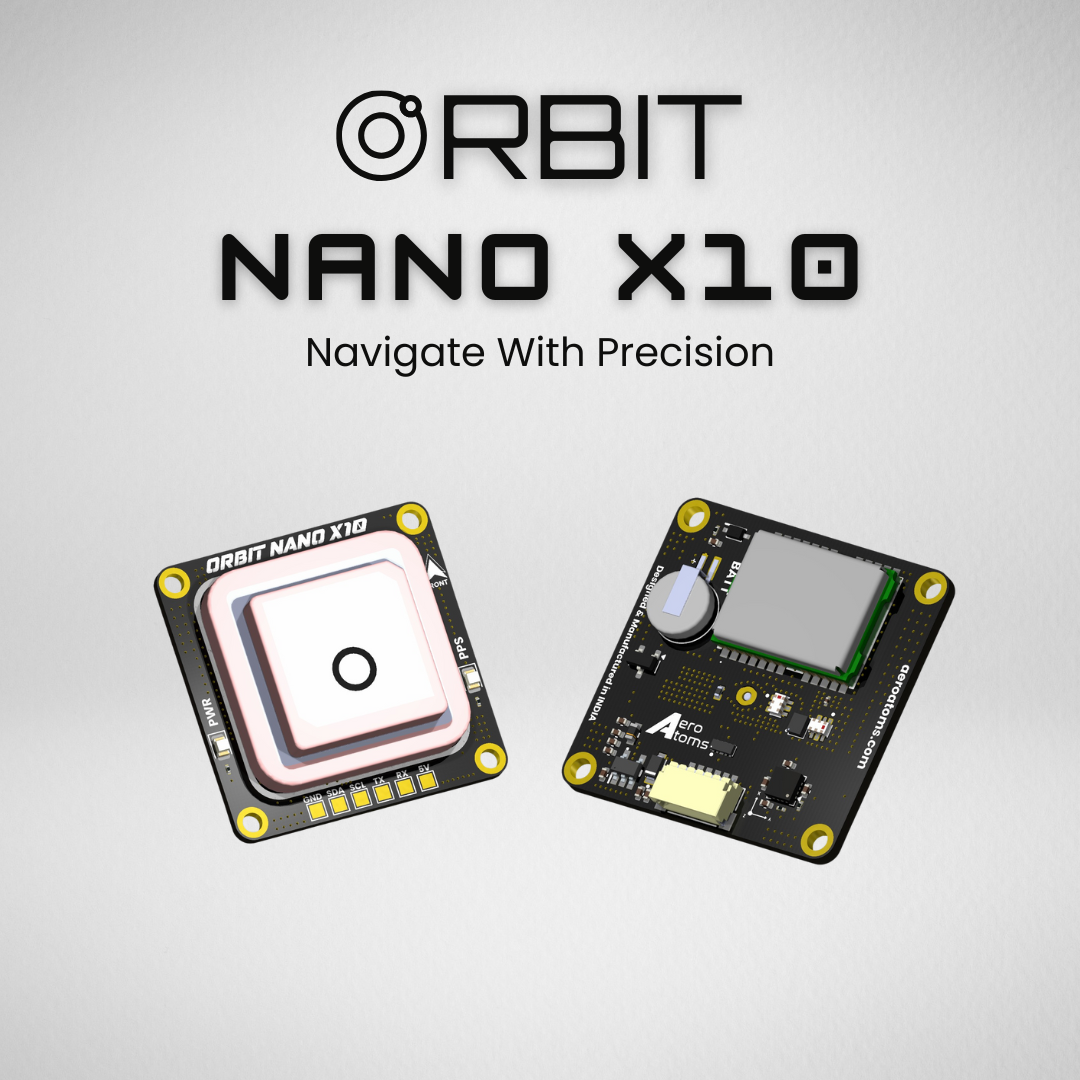

Orbit Nano X10
The ORBIT NANO X10 integrates the advanced u-blox NEO-F10N GNSS receiver and IST8310 magnetometer. This compact system provides dual-band multi-constellation GNSS capabilities including NavIC support with enhanced positioning accuracy, making it ideal for applications requiring reliable high-performance positioning in the smallest form factor. A multi-constellation, dual-band antenna is included to ensure optimal signal reception across diverse environments.
Key Features
- Smallest Dual-Band GNSS: Ultra-compact form factor with comprehensive dual-band satellite support
- Integrated LNA + SAW Filter: Built-in low-noise amplifier and surface acoustic wave filter for enhanced signal gain and superior interference rejection
- Dual-Band Reception: L1/L5 multi-band support for improved accuracy and reliability
- Multi-Constellation Support: Concurrent tracking of GPS, Galileo, BeiDou, GLONASS, and NavIC signals
- GNSS Bands Support: L1C/A, L5, L1OF, E1B/C, E5a, B1I, B2a (including NavIC L5)
- Enhanced Accuracy: Superior positioning with dual-band multi-constellation support
- Integrated Magnetometer: IST8310 3-axis digital compass for complete navigation solution
- UART Interface: Standard serial interface for universal compatibility
- Dual LED Status: Green LED for power status, Blue PPS LED for GPS lock indication
- High Update Rate: Navigation rate of up to 10 Hz for dynamic applications
- Enhanced Sensitivity: LNA amplification for improved weak signal performance
Magnetometer (IST8310)
| Parameter | Specification |
|---|---|
| Full Scale | ±1600 µT |
| Resolution | 0.3 µT |
| Output Data Rate | Up to 160 Hz |
| Operating Range | -40°C to +85°C |
