Orbit Nano X9 User Guide

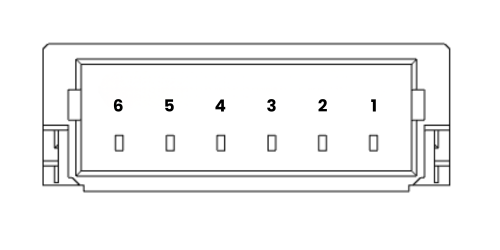

Pin Configuration
Cable Connection Details
| Pin Number | Function | Cable Color |
|---|---|---|
| 1 | VCC_5V | Red |
| 2 | TX (GPS) | Black |
| 3 | RX (GPS) | Black |
| 4 | SDA (Compass) | Black |
| 5 | SCL (Compass) | Black |
| 6 | GND | Black |
Additional Notes
- Keep the device stationary during initialization
- Ensure proper GPS antenna positioning for optimal signal reception
- Monitor battery levels to prevent unexpected shutdowns
- Regular system checks recommended for optimal performance
Important: If persistent error states occur, check all connections and consider system restart. If issues continue, consult technical support.
