Orbit Nano Dimensions

Physical Dimensions and Mounting Specifications

This reference provides precise mechanical specifications to assist with installation planning and hardware integration.

Key Mechanical Specifications

• Length: 27.8mm
• Width: 27.8mm
• Height: 13.5mm
• Weight: 23.2g

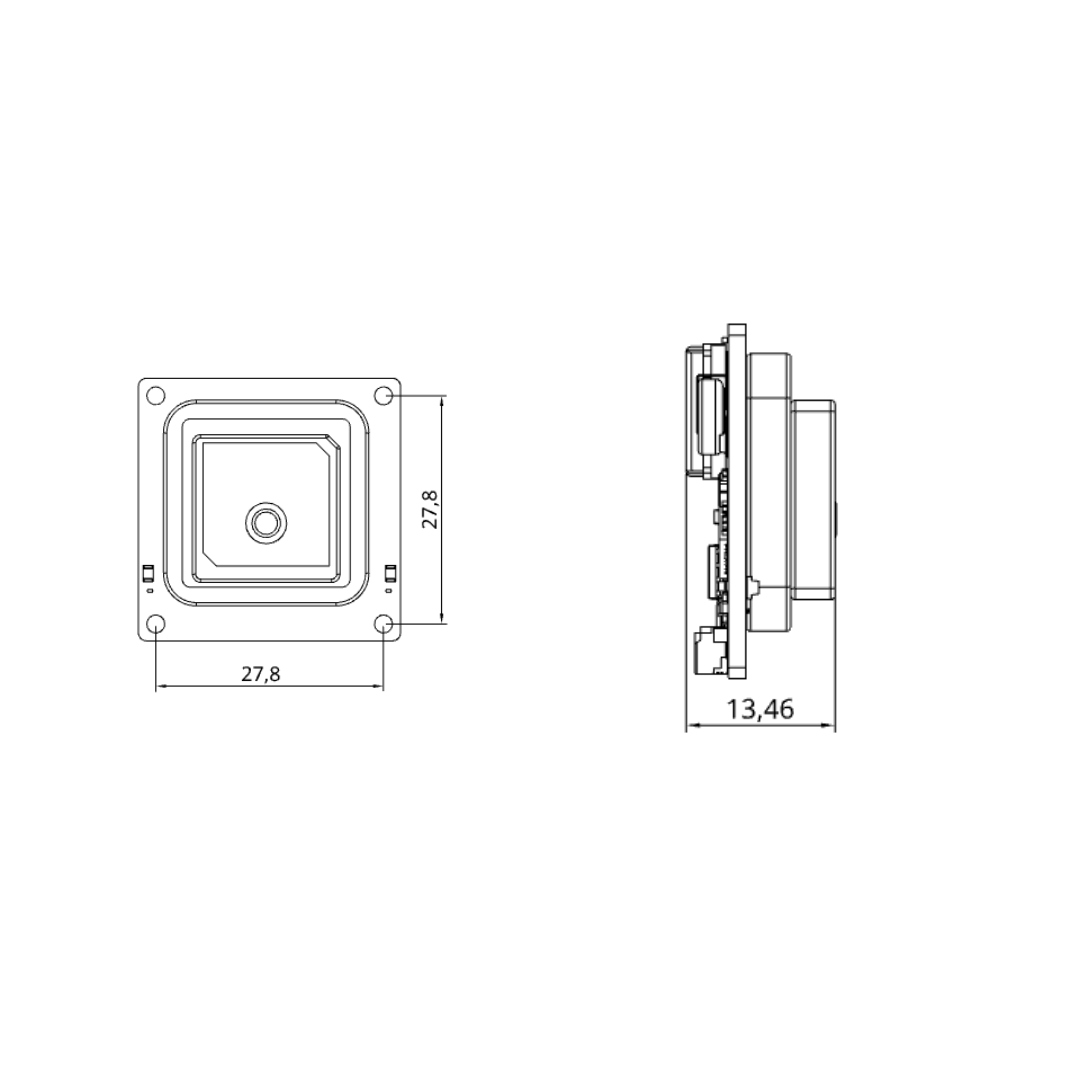

This technical drawing provides precise dimensions to assist with integration planning, custom mounting solutions, and enclosure design.
