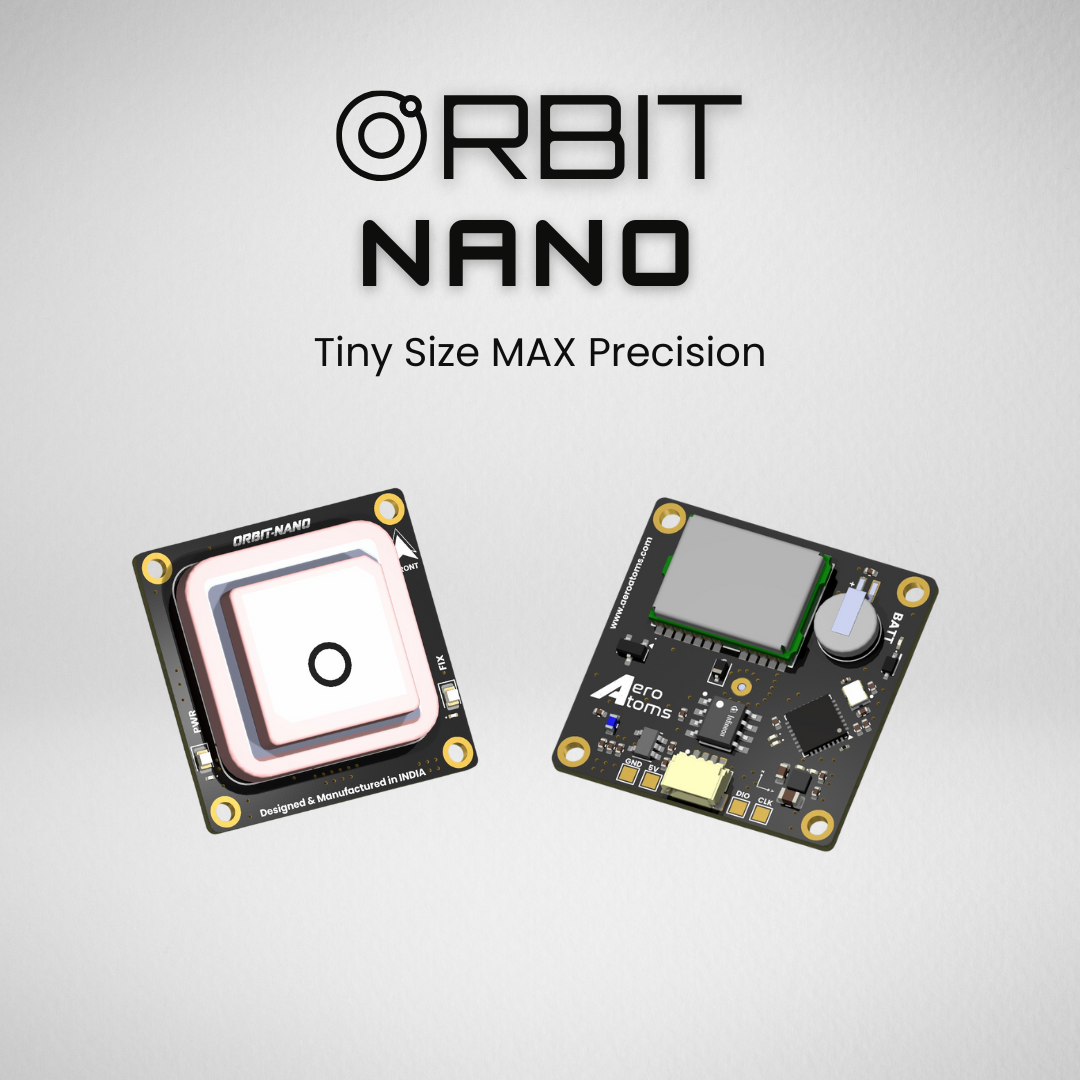

Orbit Nano
The ORBIT NANO integrates the advanced u-blox NEO-F9P GNSS receiver and high-precision IIS2MDC magnetometer. This sophisticated system provides multi-band GNSS capabilities with RTK support for centimeter-level accuracy, making it ideal for applications requiring precise positioning. A multi-constellation, multi-band antenna is included to ensure optimal signal reception across diverse environments.
Key Features
- World’s Smallest RTK + NavIC Solution: Ultra-compact form factor with comprehensive satellite support
- Multi-Band GNSS Reception: Concurrent tracking of GPS, Galileo, BeiDou, NavIC, and GLONASS signals
- GNSS Bands Support: L1C/A, L5, L1OF, E1B/C, E5a, B1I, B2a
- Centimeter-Level Accuracy: High-precision positioning with RTK support
- Integrated Magnetometer: IIS2MDC magnetometer for complete navigation solution
- DroneCAN Interface: Seamless integration with advanced UAV systems
- Status Indication: Blue PPS LED and RTK status LED for intuitive operation
- High Update Rate: Navigation rate of up to 10 Hz for dynamic applications
Magnetometer (IIS2MDC)
| Parameter | Specification |
|---|---|
| Full Scale | ±50 gauss |
| Output Resolution | 16-bit |
| Operating Range | -40°C to +85°C |
