Orbit Neo Plus Dimensions

Physical Dimensions and Mounting Specifications

This reference provides precise mechanical specifications to assist with installation planning and hardware integration.

Key Mechanical Specifications (Without Stand)

• Diameter: Ø 75.8 (±0.5mm)
• Height: 25.48mm (±0.5mm)
• Mounting Holes: 4 x M3 Slots (see diagram for precise locations)
• Weight: 85g (with stand & cable)

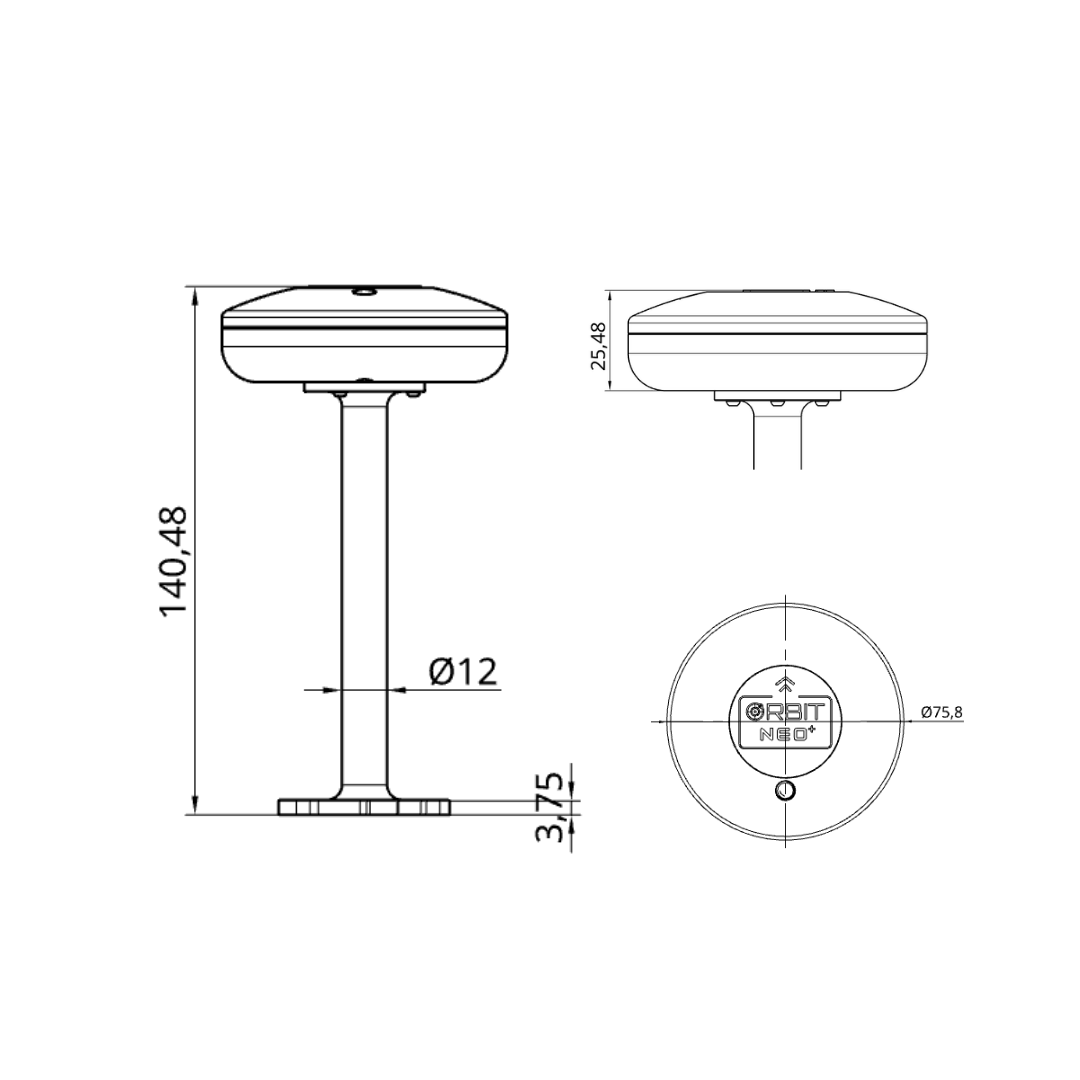

This technical drawing provides precise dimensions to assist with integration planning, custom mounting solutions, and enclosure design.
