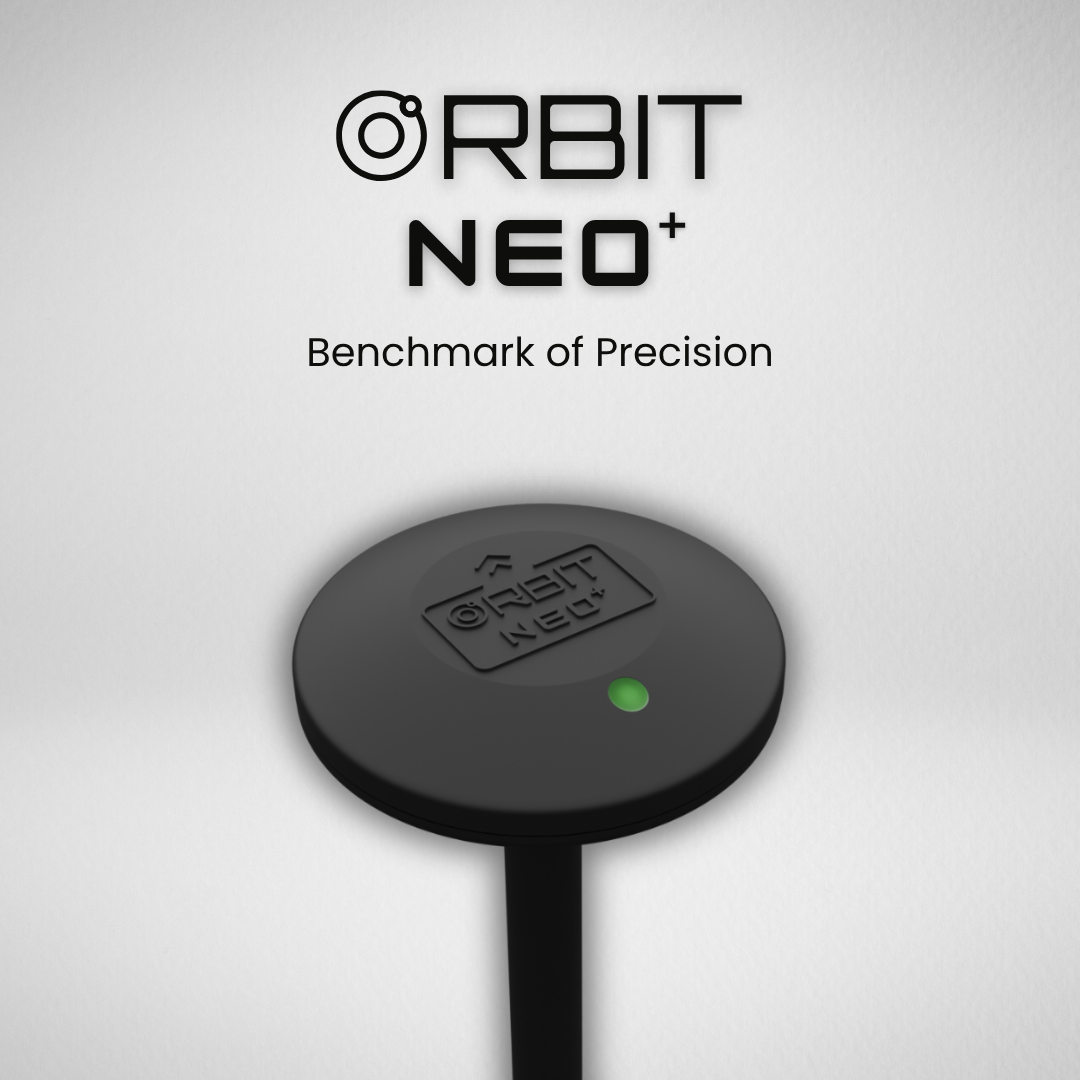

Orbit Neo Plus

The ORBIT NEO PLUS builds upon the proven foundation of the Orbit Neo, integrating the same advanced u-blox ZED-F9P GNSS receiver alongside a high-precision IST8310 magnetometer and a robust DPS368XTSA1 barometer. Designed for demanding environments, the Neo Plus adds Moving Baseline support for heading without reliance on magnetic field, a fully enclosed IP65-rated chassis, integrated EMI shielding, and an onboard LNA with SAW filter for superior signal clarity in RF-noisy conditions. A multi-constellation, multi-band antenna is included to ensure optimal signal reception across diverse environments.

Key Features

• Multi-Band GNSS Reception: Concurrent tracking of GPS, Galileo, BeiDou, NavIC, and GLONASS signals
• GNSS Bands Support: L1C/A, L5, L1OF, E1B/C, E5a, B1I, B2a
• Centimeter-Level Accuracy: High-precision positioning with RTK support
• Moving Baseline Support: Dual-antenna heading solution independent of magnetic field
• EMI Shielding: Integrated shielding for reliable operation in electrically noisy environments
• IP65 Protection: Dust-tight and water jet-resistant enclosure for harsh-environment deployment
• LNA + SAW Filter: Onboard low-noise amplifier and SAW filter for enhanced signal sensitivity and selectivity
• Integrated Sensors: IST8310 magnetometer and DPS368XTSA1 barometer for a complete navigation solution
• DroneCAN Interface: Seamless integration with advanced UAV systems
• Status Indication: Blue PPS LED and RTK status LED for intuitive operation
• High Update Rate: Navigation rate of up to 10 Hz for dynamic applications

Magnetometer (IST8310)

Parameter	Specification
Axes	3-axis (X, Y, Z)
Package	3.0 × 3.0 × 1.0 mm³, 16-pin LGA
Output Interface	I2C (up to 400 kHz fast mode)
Operating Range	-40°C to +85°C

Barometer (DPS368XTSA1)

Parameter	Specification
Pressure Range	300 to 1200 hPa
Relative Accuracy	±0.06 hPa (±0.5 m)
Absolute Accuracy	±1 hPa (±8 m)
Resolution	0.002 hPa (high precision mode)
Operating Range	-40°C to +85°C
