Wave ESC Dimensions

Mechanical Dimensions and Mounting

This reference provides precise mechanical specifications for the Wave ESC to assist with hardware integration and custom mounting solutions.

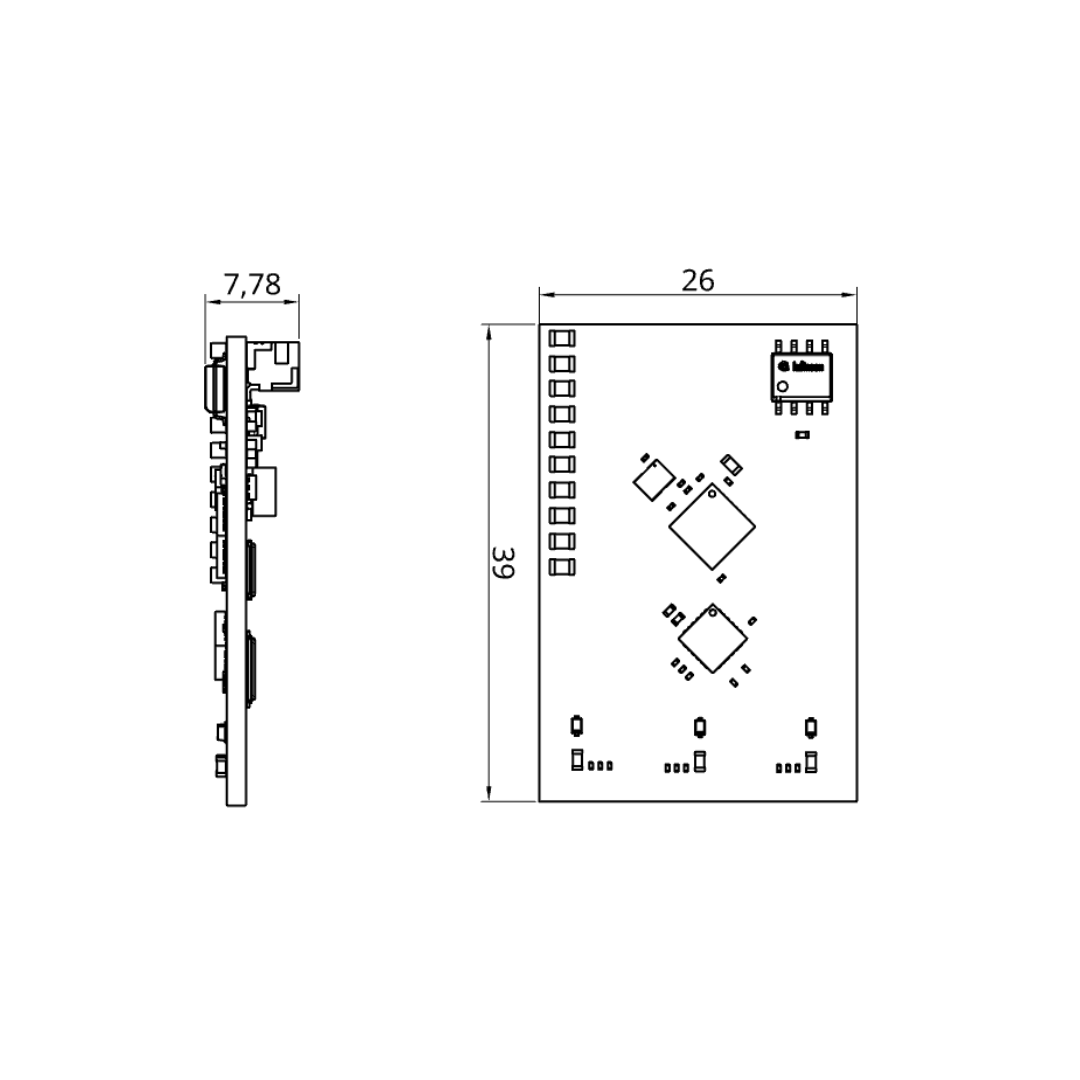

Wave ESC Mechanical Drawing

Key Mechanical Specifications

  • Length: 39mm
  • Width: 26mm
  • Height: 8mm
  • Weight: 7.6g (without wires)

This technical drawing provides precise dimensions to assist with integration planning, custom mounting solutions, and enclosure design.
