Orbit EVO Dimensions

Physical Dimensions and Mounting Specifications

This reference provides precise mechanical specifications to assist with installation planning and hardware integration.

Key Mechanical Specifications

• Diameter: Ø 56mm (±0.5mm)
• Height: 19.4mm (±0.5mm)
• Weight: 35.2g

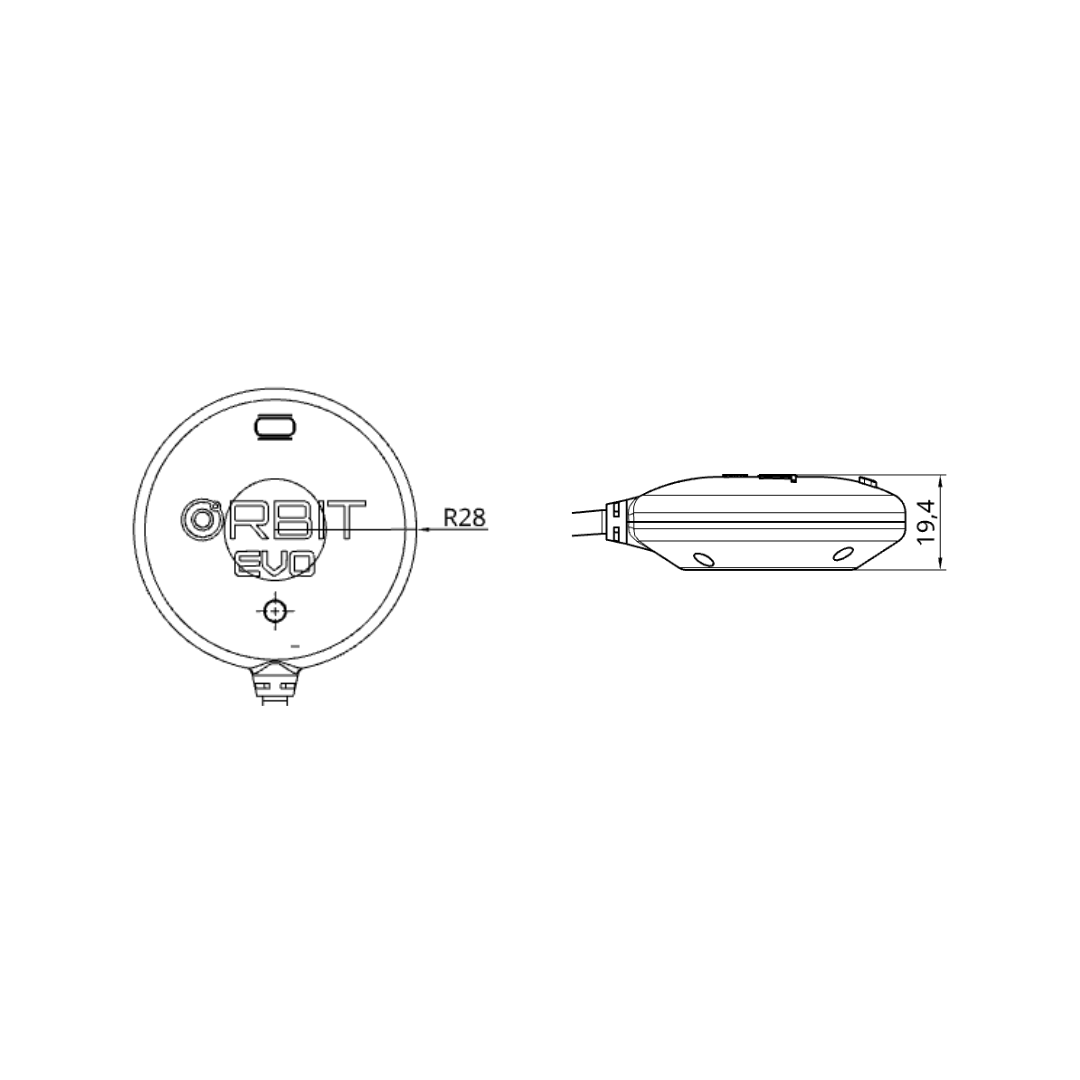

This technical drawing provides precise dimensions to assist with integration planning, custom mounting solutions, and enclosure design.
