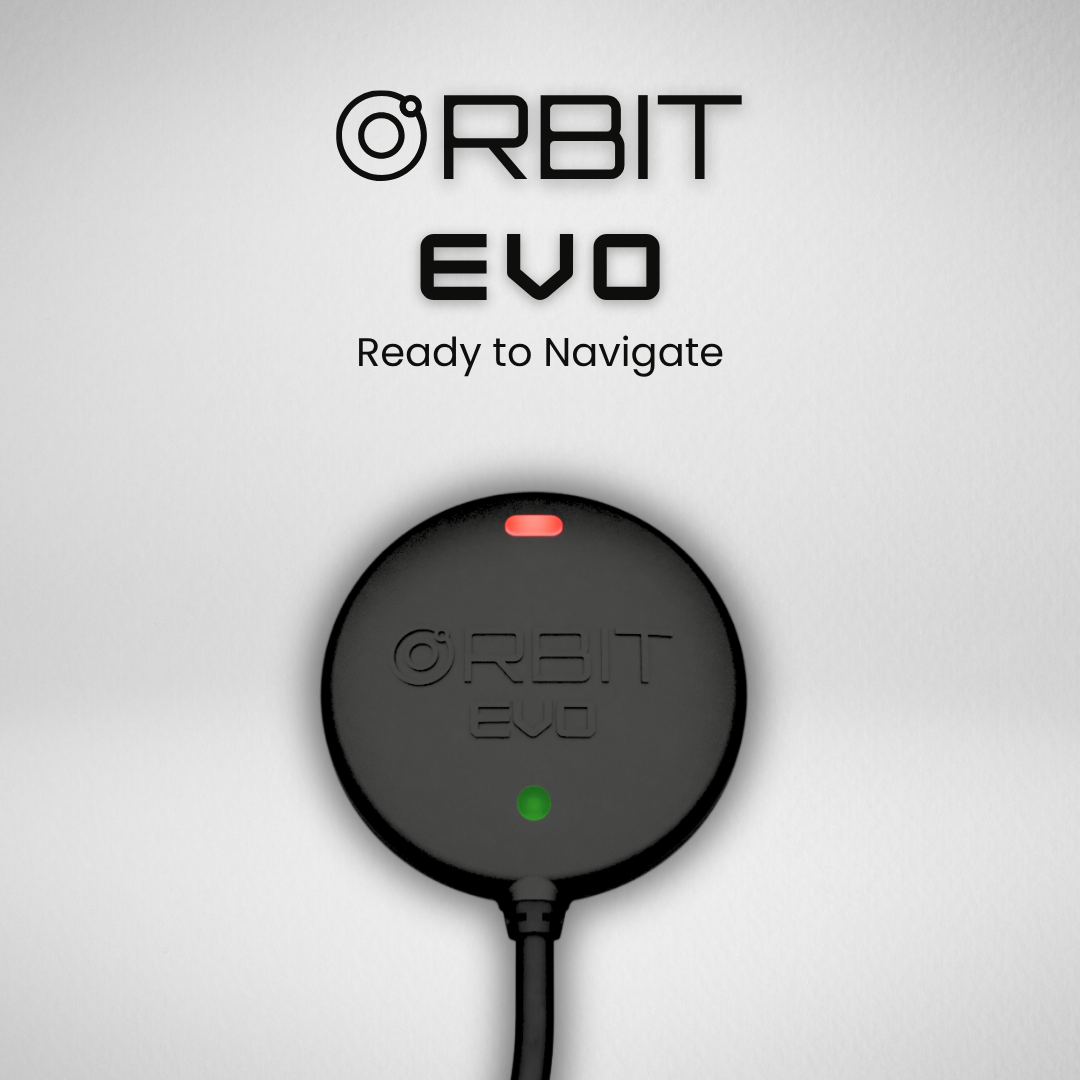

Orbit EVO

The ORBIT EVO integrates the reliable u-blox NEO-M9N GNSS receiver, IST8310 magnetometer, safety switch, and buzzer into a comprehensive navigation solution. This professional-grade system provides multi-constellation GNSS capabilities with enhanced signal performance, making it the complete all-in-one solution for applications requiring both precision positioning and integrated safety features. A multi-constellation antenna is included to ensure optimal signal reception across diverse environments.

Key Features

• All-in-One Professional Solution: Complete navigation system with integrated safety features
• Dual Interface Options: Available in both UART and DroneCAN variants for flexible integration
• Enhanced Signal Performance: Dual-stage LNA amplification with SAW filter for superior signal gain and interference rejection
• Integrated Safety Switch: Built-in arm/disarm switch for safe flight operations
• Buzzer: Audible alerts for status notifications and safety warnings
• Multi-Constellation Reception: Concurrent tracking of GPS, Galileo, BeiDou, and GLONASS signals
• GNSS Bands Support: L1C/A, L1OF, E1B/C, B1I
• Reliable Accuracy: Standard positioning with multi-constellation support
• Integrated Magnetometer: IST8310 3-axis digital compass for complete navigation solution
• Dual LED Status: Green LED for power status, Blue PPS LED for GPS lock indication
• High Update Rate: Navigation rate of up to 10 Hz for dynamic applications
• Superior Sensitivity: LNA configuration for maximum weak signal performance

Available Variants

UART Version

• Standard serial interface (TX/RX)
• I2C for compass communication
• Dedicated safety switch and buzzer connections
• Universal compatibility with all flight controllers

DroneCAN Version

• Single-cable CAN bus connection
• Hot-swappable plug-and-play operation
• Automatic node configuration
• Redundant communication protocol
• Advanced telemetry and diagnostics

Integrated Components

Safety Switch

• Tactile button for arming control
• LED indicator for arm/disarm status
• Compatible with ArduPilot and PX4 safety protocols

Buzzer

• Audible feedback for:
  • Arming/disarming confirmation
  • GPS fix acquisition
  • Pre-flight warnings
  • Low battery alerts
  • Critical system notifications

Magnetometer (IST8310)

Parameter	Specification
Full Scale	±1600 µT
Resolution	0.3 µT
Output Data Rate	Up to 160 Hz
Operating Range	-40°C to +85°C
