Orbit G5 Pro Dimensions

Physical Dimensions and Mounting Specifications

This reference provides precise mechanical specifications to assist with installation planning and hardware integration.

Key Mechanical Specifications (Without Stand)

• Length: 55.5mm
• Width: 46.4mm
• Height: 24.7mm
• Weight: 50g

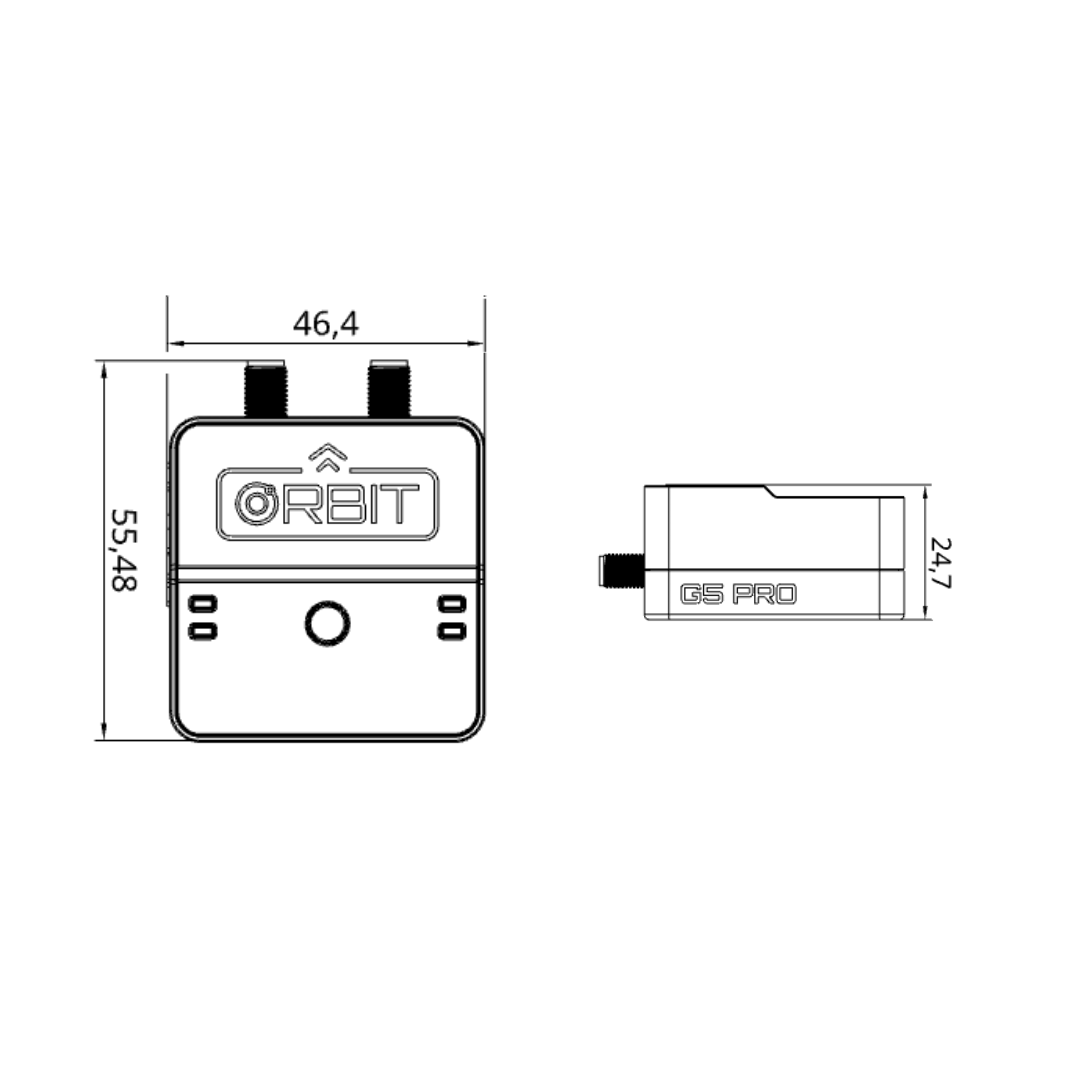

This technical drawing provides precise dimensions to assist with integration planning, custom mounting solutions, and enclosure design.
