Orbit SAM Dimensions
Physical Dimensions and Mounting Specifications
This reference provides precise mechanical specifications to assist with installation planning and hardware integration.
Key Mechanical Specifications
- Length: 20mm
- Width: 20mm
- Height: 11.45mm
- Weight: 9.1g

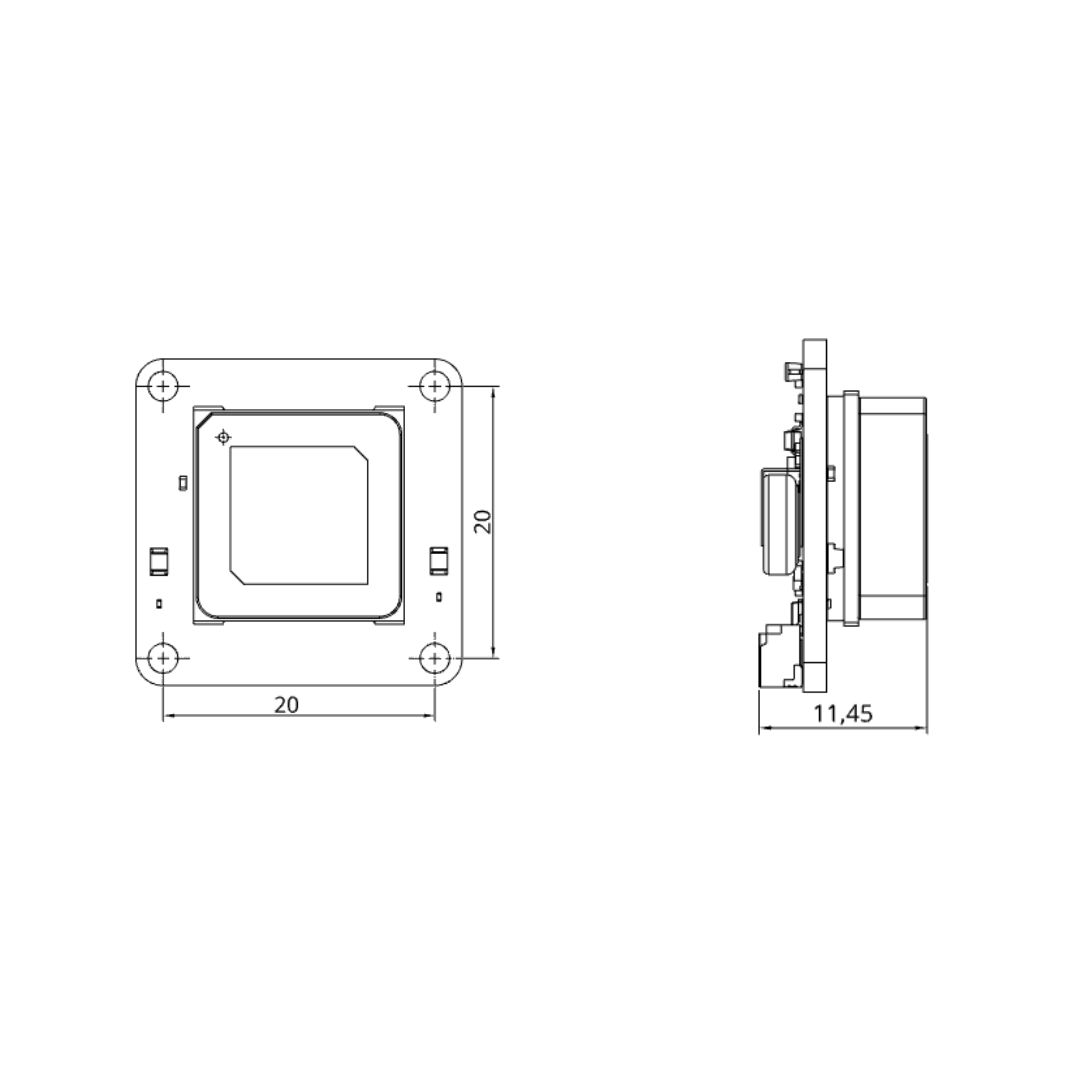

This technical drawing provides precise dimensions to assist with integration planning, custom mounting solutions, and enclosure design.
