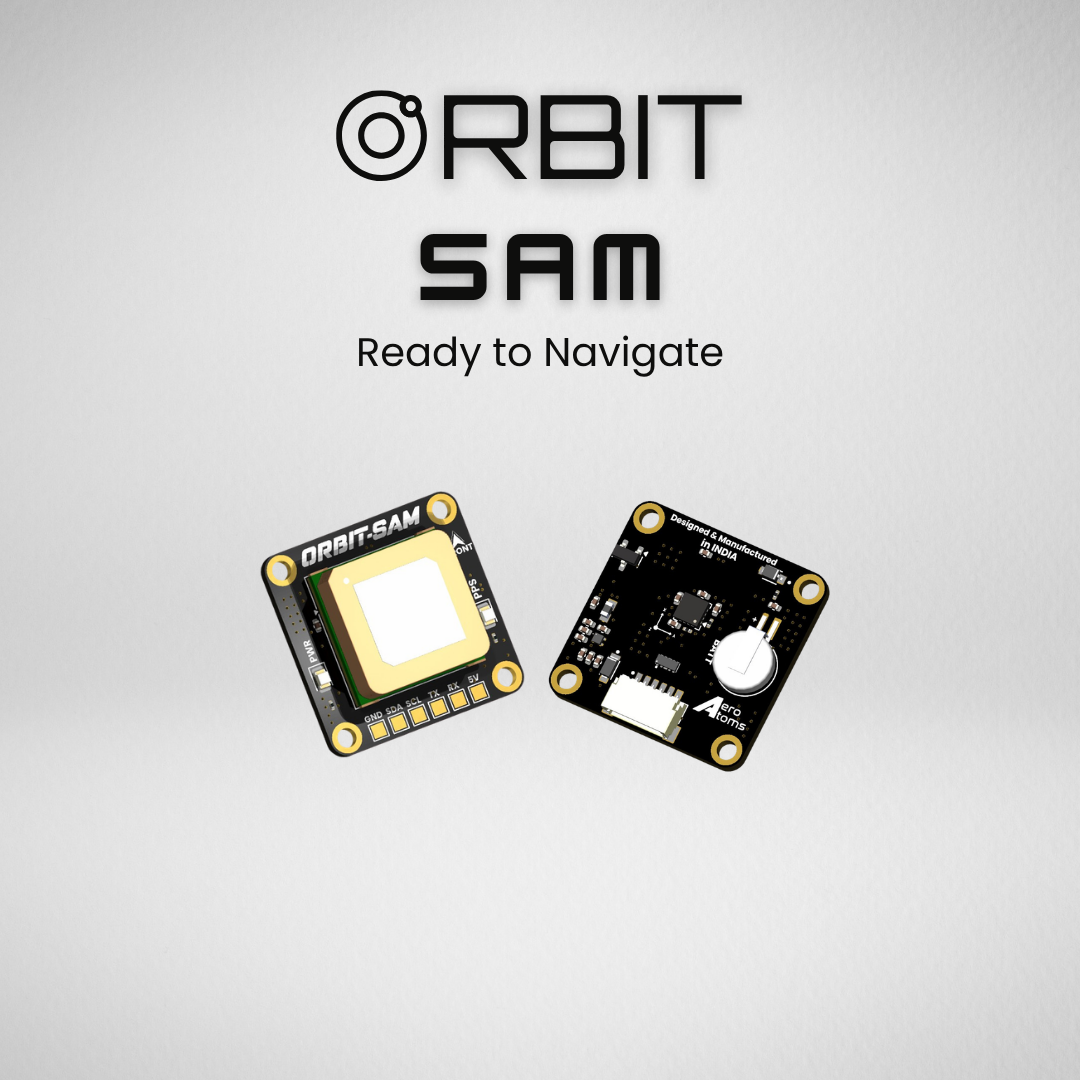

Orbit SAM
The ORBIT SAM integrates the efficient u-blox SAM-M10Q GNSS receiver and IST8310 magnetometer. This ultra-compact system provides multi-constellation GNSS capabilities with low power consumption, making it ideal for entry-level applications requiring reliable positioning with extended battery life in the smallest form factor. A multi-constellation antenna is included to ensure optimal signal reception across diverse environments.
Key Features
- Ultra-Compact Entry-Level GNSS: Smallest form factor with comprehensive satellite support
- Low Power Consumption: Optimized for battery-powered and energy-efficient applications
- Multi-Constellation Reception: Concurrent tracking of GPS, Galileo, BeiDou, and GLONASS signals
- GNSS Bands Support: L1C/A, L1OF, E1B/C, B1I
- Reliable Accuracy: Standard positioning with multi-constellation support
- Integrated Magnetometer: IST8310 3-axis digital compass for complete navigation solution
- UART Interface: Standard serial interface for universal compatibility
- Dual LED Status: Green LED for power status, Blue PPS LED for GPS lock indication
Magnetometer (IST8310)
| Parameter | Specification |
|---|---|
| Full Scale | ±1600 µT |
| Resolution | 0.3 µT |
| Output Data Rate | Up to 160 Hz |
| Operating Range | -40°C to +85°C |
